| Mechanics | |
| Dimensions | 210*135*45mm |
| Weight | About 300g |
| Hardware | ||

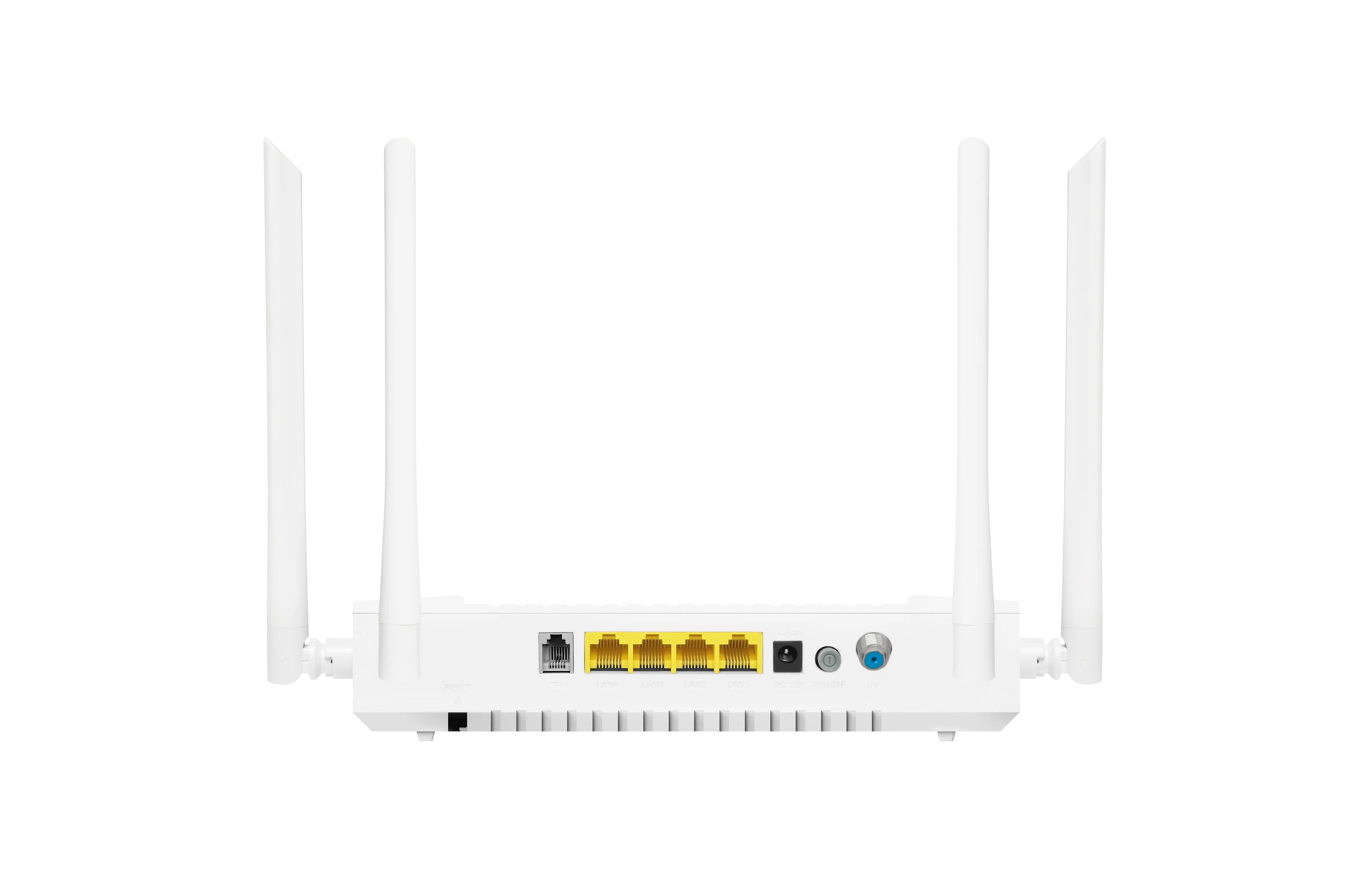

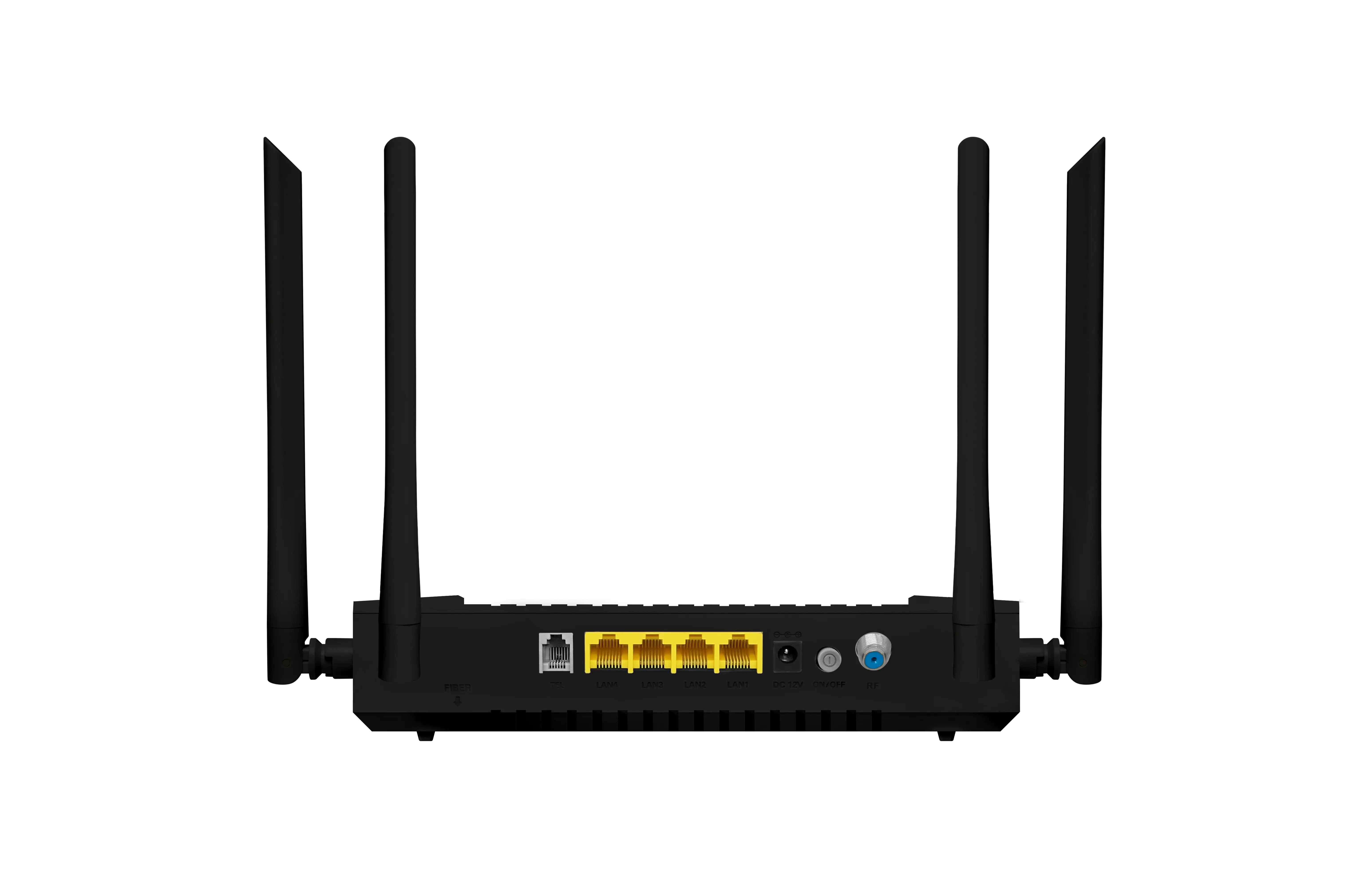

| User Port (LAN) | RJ-45 connector | |
| 4 *10/100/1000Mbps adaptive Ethernet port | ||
Full/half duplex | ||
| Auto MDI/MDI-X | ||
| Indicators | PWR / PON / LOS / LAN1-4 / INT / TEL / CATV / WIFI | |
| PON Port | PON Mode | EPON：1000BASE-PX20+ symmetric GPON：FSAN G.984.2 standard,Class B+ |
| PON Rate | EPON：1.25Gbps downstream/upstream GPON：2.488Gbps/1.244Gbps downstream/upstream | |
| Wavelength | Transmit: 1310nm Receiver: 1490nm | |
Receiving sensitivity | EPON：-27dBm GPON：-28dB | |
Saturated power | EPON：-3dBm GPON：-8dBm | |
Transmitting powe | EPON:0～4dBm GPON：0.5～5dBm | |
| CATV (Input/Output port) |
Wavelength: 1550nm |
Input optical power: -18dBm～0dBm(with AGC) |
RF frequency: 47MHz~1000MHz |
| RF output level: 78dBuV (@-12~-2dBm@85MHz) (with AGC) |
| RF output return loss: >12dB(with AGC) |
RF impedance: 75Ω |
| User Port (POTS) |
| RJ-11 connector |
1*account |
SIP protocol |
| TDMF |
G711U/G711A/G729/G722 encoding and decoding |
| WIFI |
| IEEE802.11b/g/n/ax(2.4G) / IEEE802.11a/n/ac/ax(5G) |
| 2.4G: 40Mhz bandwidth maximum rate 300Mbps 5G：80Mhz bandwidth maximum rate 1201Mbps Total wireless rate is 1500Mbps |
| 2.4G EIRP:24dBm / 5 G EIRP:22dBm |
| Environment | |
| Working temperature | 0 to 40ºC |
Operating humidity | 10% ~ 90% (Non-condensing) |
| NO. | Product Model | Specifications | Accessories |
| 1 | FD812XW-R460 | 1*xPON + 1*FE RJ45 + 1*GE RJ45 + 1*POTS + 1*RF CATV + Wi-Fi | AC-DC Power Adapter: DC 12V/0.5A |
| 2 | FD814GD-R760 | 1*xPON + 4*GE RJ45 + 1*POTS + 1*RF CATV + Dual-Band Wi-Fi | AC-DC Power Adapter: DC 12V/0.5A |
| 3 | FD814GS1-R850 | 1*xPON + 4*GE RJ45 + 1*POTS + 1*RF CATV + Dual-Band Wi-Fi | AC-DC Power Adapter: DC 12V/0.5A |
