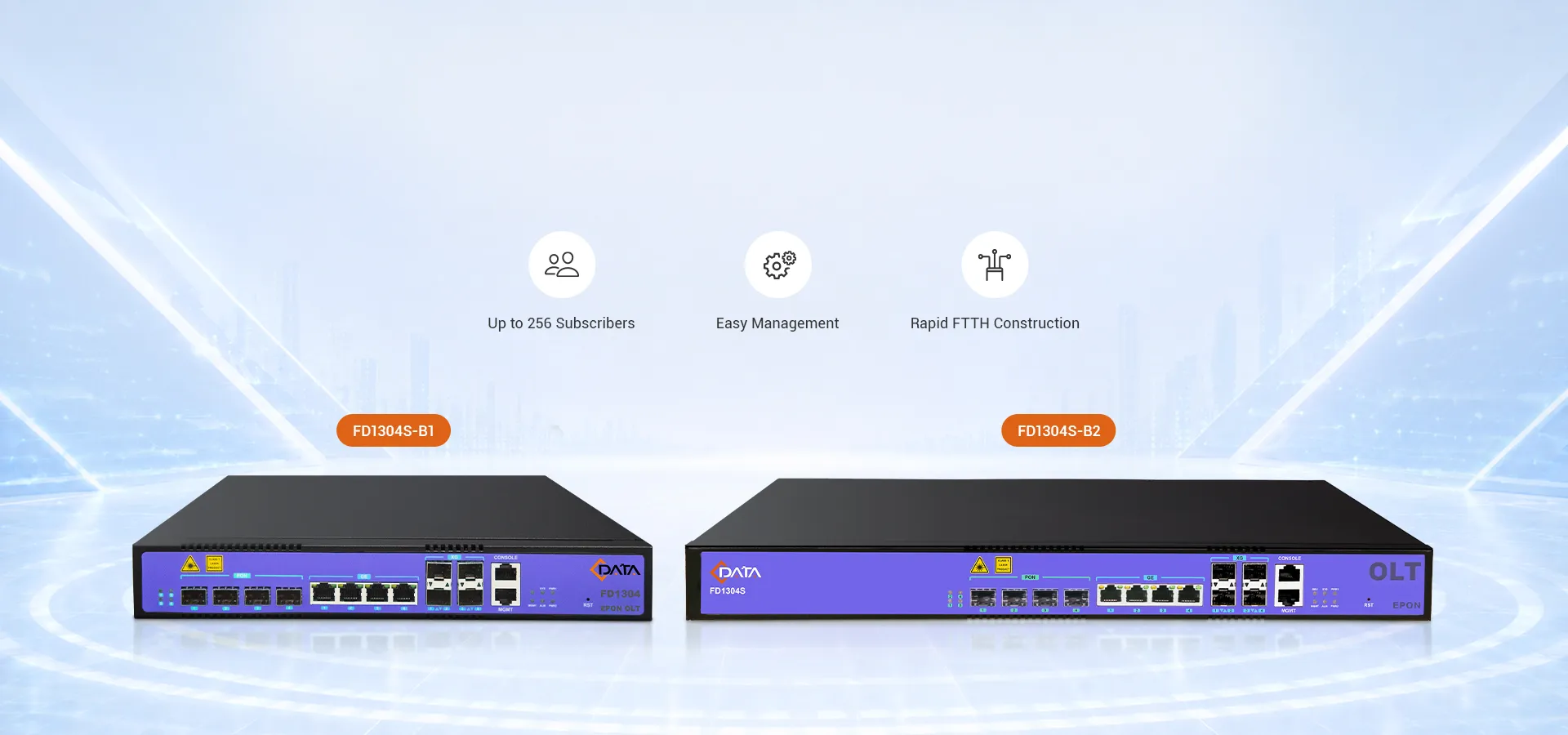

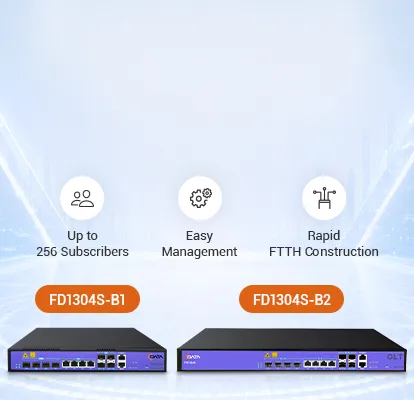

C-Data 4-Port EPON OLT - 翻译中...

Management Rack

1U 19-inch standard box

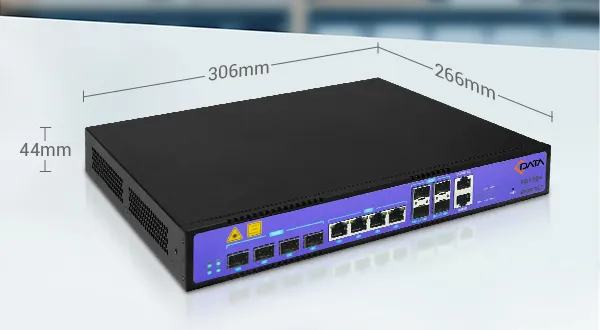

Dimensions

306*266*44mm

Weight

2.6kg

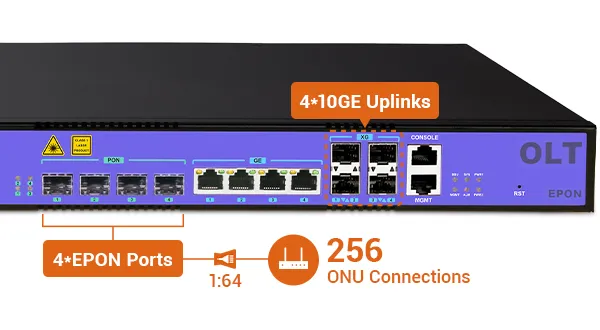

Uplink Port

4 10/100/1000M auto-negotiation Ethernet ports

10-Gigabit

4 SFP+ interfaces

PON Port

Quantity

4

Physical interface

SFP slot

Interface type

EPON:  IEEE802.3ah

Max splitting ratio

EPON:  1:64

Management Port

1  100/1000BASE-Tx out-band Ethernet port

1  CONSOLE local management port

PON Port attribute

Transmission distance

20KM

Port rate

EPON: Symmetrical 1.25Gbps

Wavelength

Forwarding: 1490nm       Receiving: 1310nm

Interface type

SC/UPC

Fiber type

9/125μm SMF (Single Mode Fiber)

Light transmission power

PX20+: 2~5.5dBm

Receiving sensitivity

PX20+:-28dBm

Saturation power

PX20+:-8dBm

Backplane Bandwidth

98G

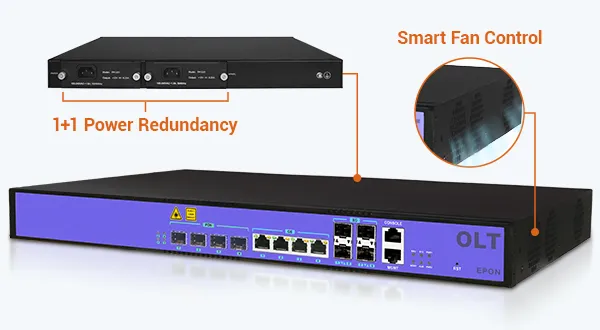

AC

100V ~ 240V，47~63Hz

DC

-36 ~ -72VDC

Working temperature

-15 ~ 50℃

Storage temperature

-40 ~ 85℃

Ambient humidity

5 ~ 90% (Non-condensing)
