Shenzhen C-Data Technology Co., Ltd.
Shenzhen C-Data Technology Co., Ltd.
Overview Specs Ordering Information
FD511G-F660 FD711G-F360 FD511T-R460s - 翻译中... FD511TH-R460s - 翻译中...

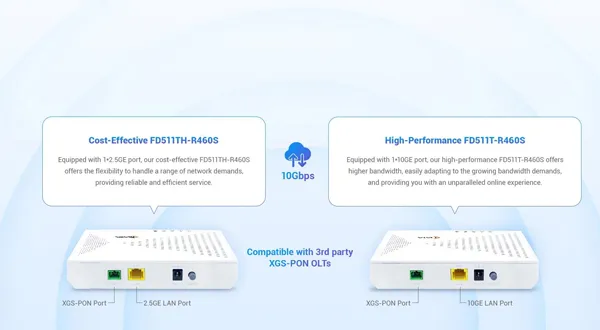

Elevating Network Capacity with High Bandwidth - 翻译中...

Elevating Network Capacity with High Bandwidth - 翻译中...

翻译中...
Efficient Solution for Modern Business Operations - 翻译中...

Efficient Solution for Modern Business Operations - 翻译中...

翻译中...
The Ideal Choice for Enhanced Life Quality - 翻译中...

The Ideal Choice for Enhanced Life Quality - 翻译中...

翻译中...
The Integrated Management System - 翻译中...

The Integrated Management System - 翻译中...

翻译中...

Multiple Application Scenarios - 翻译中...

  • xgs pon onu in smart home
  • xgs pon onu in smb
  • xgs pon onu in school

Technical Overview

  • FD511TH-R460s
  • FD511TH-R460s
翻译中...
Datasheet Get Docs

Technical Specifications


Mechanics

Dimensions

160mm(L)*112mm(W)*32mm(H)

Weight

About 200g



Hardware

User Port (LAN)

RJ-45 connector

2.5GE

Full/half duplex

Auto MDI/ MDI-X

Indicators

PWR / XGSPON / LOS / LAN / INT

PON Port

PON Mode

XGSPON：FSAN G.9807.1 standard

PON Rate

XGSPON：10Gbps/10Gbps downstream/upstream

Wavelength

Transmit: 1270nm

Receiver: 1577nm

Receiving sensitivity

XGSPON：-28dBm

Saturated power

XGSPON：-9dBm

Average sending

XGSPON：+4～+9dBm



Environment

Working temperature

0 to 40ºC

Operating humidity

10% ~ 90% (Non-condensing)


Power

External 12VDC/ 1A power supply adapter

Power consumption

<8.1W


Technical Specifications

Mechanics

Dimensions

  • 160mm(L)*112mm(W)*32mm(H)

Weight

  • About 200g



Hardware

User Port (LAN)

  • RJ-45 connector

  • 2.5GE

  • Full/half duplex

  • Auto MDI/ MDI-X

Indicators

  • PWR / XGSPON / LOS / LAN / INT

PON Port

PON Mode

  • XGSPON: FSAN G.9807.1 standard

PON Rate

  • XGSPON：10Gbps/10Gbps downstream/upstream

Wavelength

  • Transmit: 1270nm

  • Receiver: 1577nm

Receiving sensitivity

  • XGSPON：-28dBm

Saturated power

  • XGSPON：-9dBm

Average sending

  • XGSPON：+4～+9dBm



Environment

Working temperature

  • 0 to 40ºC

Operating humidity

  • 10% ~ 90% (Non-condensing)



Power

External 12VDC/ 1A power supply adapter

Power consumption

  • <8.1W


Ordering Information

Product Model

Specifications

Accessories

FD511T-R460S

1*XGS-PON+1*10GE RJ45

External 12VDC/1A power supply adapter

FD511TH-R460S

1*XGS-PON+1*2.5GE RJ45

External 12VDC/1A power supply adapter


Ordering Information

Product Model

  • FD511T-R460S

  • FD511TH-R460S

Specifications

  • 1*XGS-PON+1*10GE RJ45

  • 1*XGS-PON+1*2.5GE RJ45

Accessories

  • External 12VDC/1A power supply adapter

  • External 12VDC/1A power supply adapter
