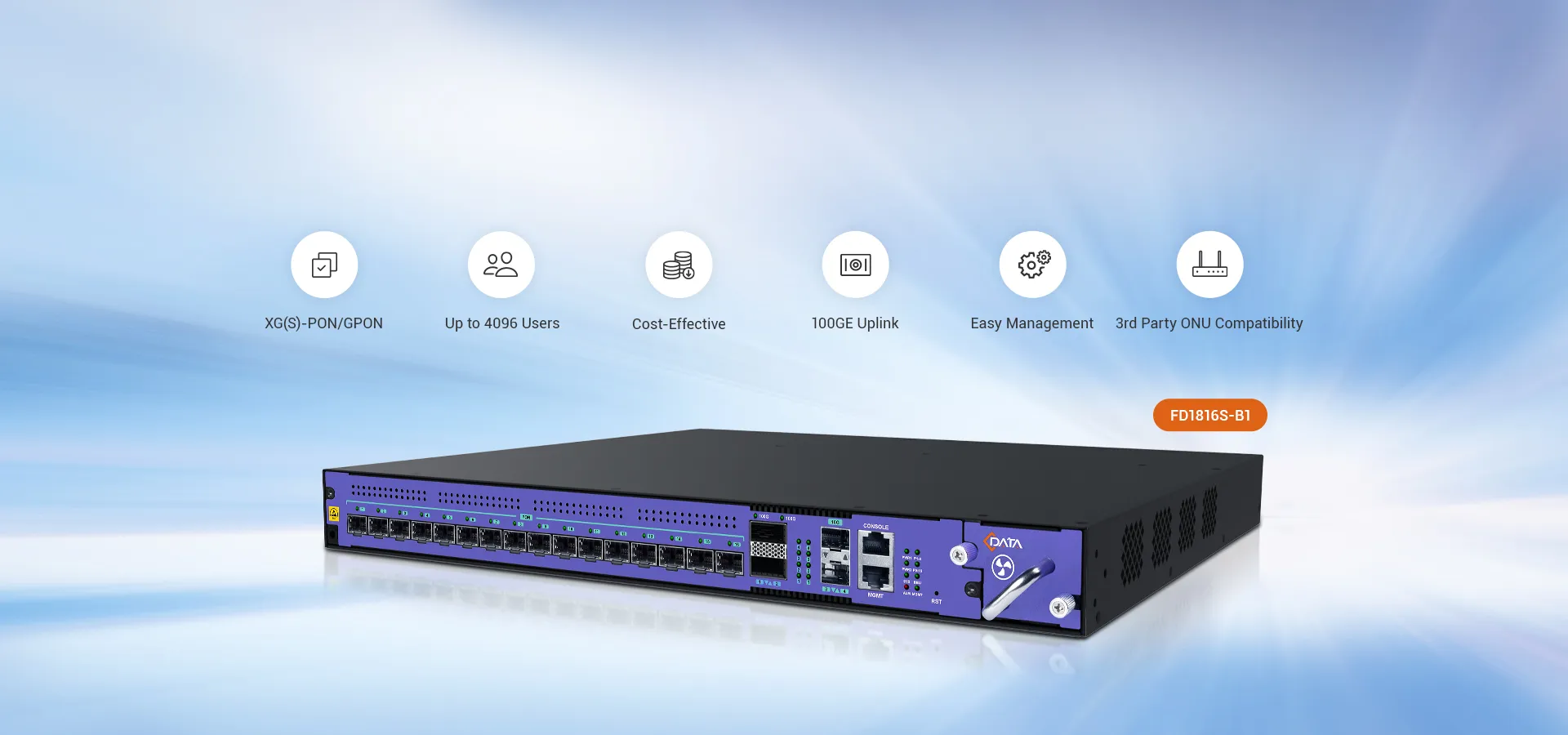

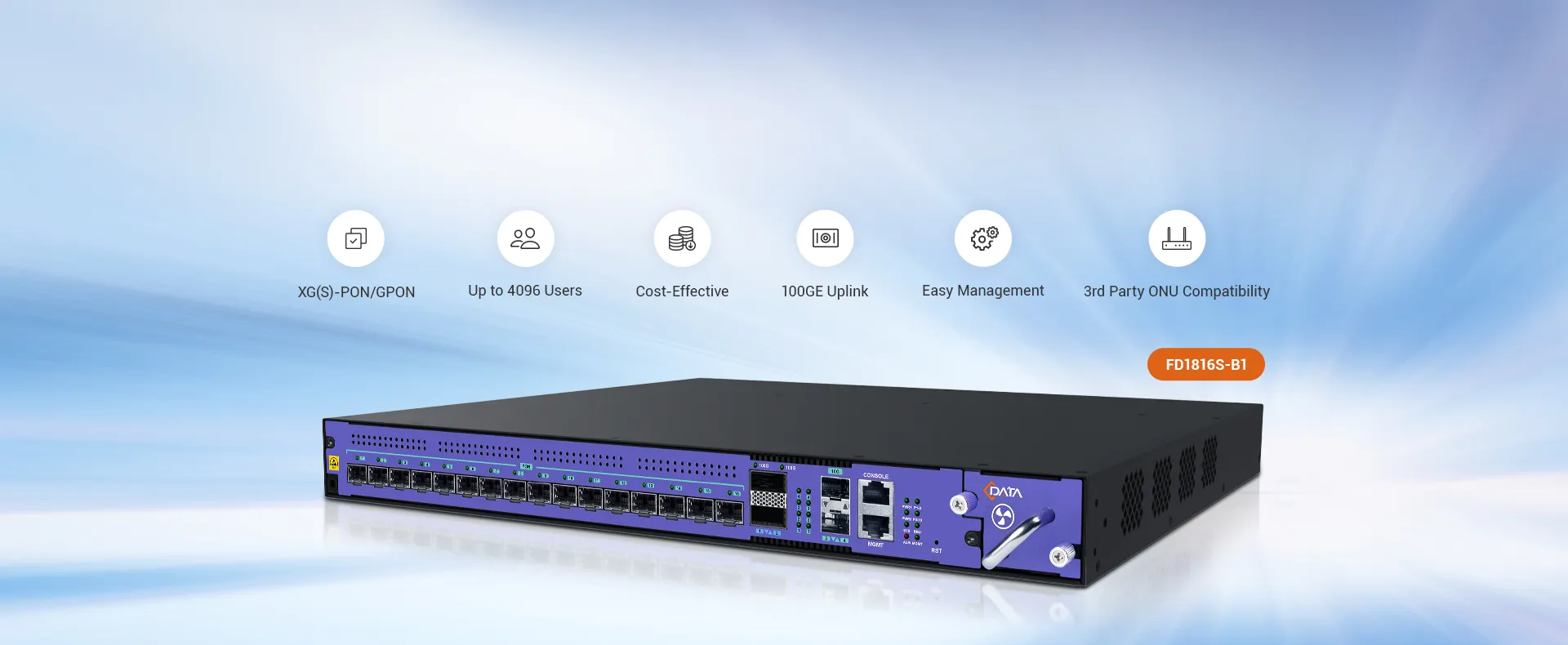

C-Data Combo PON OLT - GPON and XG(S)-PON Ready - 翻译中...

Dimensions

441mm(L)*397.5mm(W)*44.4mm(H)

Weight

6.18Kg

Uplink Port

Uplink port

2* 1G(SFP) / 10G(SFP+) ports

2* 40G(QSFP+) / 100G(QSFP28) ports

PON Port

Quantity

16

Physical Interface

SFP+ slot

Max Splitting Ratio

1:256

Management Port

1* CONSOLE local management port

1* 100/ 1000BASE-Tx out-band MGMT Ethernet port

PON Port

Attribute

Transmission Distance

20KM

Port Rate

XGS-PON:  Downstream: 10Gbps     Upstream: 10Gbps

XG-PON:  Downstream: 10Gbps     Upstream: 2.5Gbps

GPON:  Downstream: 2.5Gbps    Upstream: 1.25Gbps

Wavelength

XGS-PON:  Forwarding: 1577nm     Receiving: 1270nm

XG-PON:  Forwarding: 1577nm     Receiving: 1270nm

GPON:  Forwarding: 1490nm     Receiving: 1310nm

Connector Type

SC/ UPC

Fiber type

9/ 125μm SMF (Single Mode Fiber)

Light Transmission Power

XG(S)-PON&GPON COMBO 5~8dBm (9.953G)

3~7dBm (2.488G)

Receiving

Sensitivity

XG(S)-PON&GPON COMBO ≥ -29dBm (9.953G)

≥ -30.5dBm (2.488G) ≥ -30dBm (1.244G)

Saturation Power

XG(S)-PON&GPON COMBO ≤ -8dBm (9.953G)

≤ -10dBm (2.488G) ≤ -12dBm (1.244G)

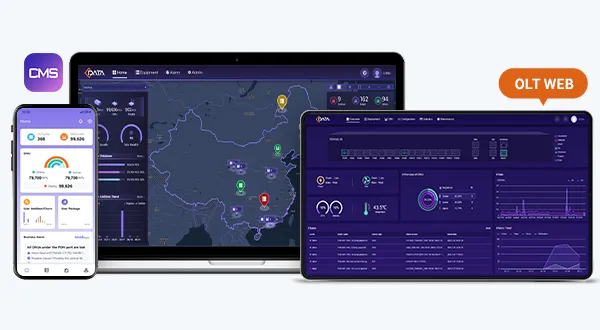

Network Management Method

Support CLI, SNMP, TELNET, SSH, WEB

Support device log, device upgrade, device management, condition monitoring, configuration management, and user management.

Layer 2 switching configuration management: Like port management, VLAN, RSTP, IGMP, ACL, QoS and so on.

PON  function configuration management: Like OLT authentication, DBA template, service template, line template and so on.

Layer 3 function: support static routing, dhcp-relay and vlanif configuration.

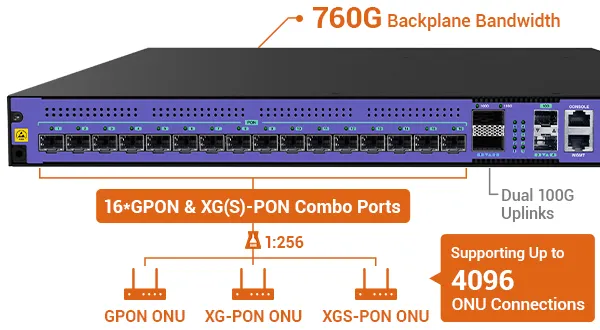

Backplane Bandwidth

760G

AC

100V ~ 240V, 47 ~ 63Hz

DC

-40V ~ -72V

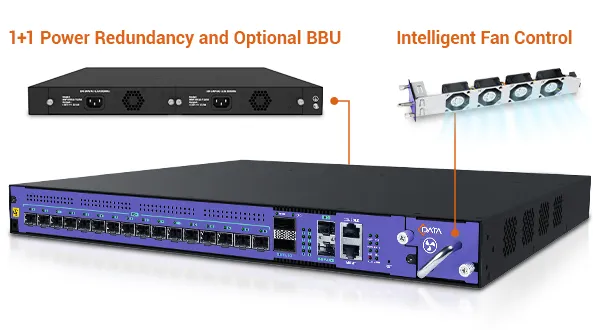

BBU (Backup Battery Unit)

DC: 11V～14V.

Function: When the regular power supply is cut off, it can be switched to the backup power supply, and when the regular power supply resumes, it will

switch back to the regular power supply and charge the backup power supply.

Maximum Power

≤ 150W

Working Temperature

-15 ~ 50℃

Storage Temperature

-40 ~ 85℃

Ambient Humidity

5 ~ 90% (Non-condensing)
