Overview Specs Ordering Information
FD510D-FP10 - 翻译中... FD511G-FA10 FD711G-FA10 FD511GS-X-RM10 - 翻译中... ONU FD5101BF - 翻译中...
PoF Solution for Efficient Power Access - 翻译中...

PoF Solution for Efficient Power Access - 翻译中...

翻译中...
PoE+ Support for Flexible Deployment - 翻译中...

PoE+ Support for Flexible Deployment - 翻译中...

翻译中...
Industrial-Grade Reliability for Uninterrupted Operation - 翻译中...

Industrial-Grade Reliability for Uninterrupted Operation - 翻译中...

翻译中...
Mini Design, Flexible Installation - 翻译中...

Mini Design, Flexible Installation - 翻译中...

翻译中...

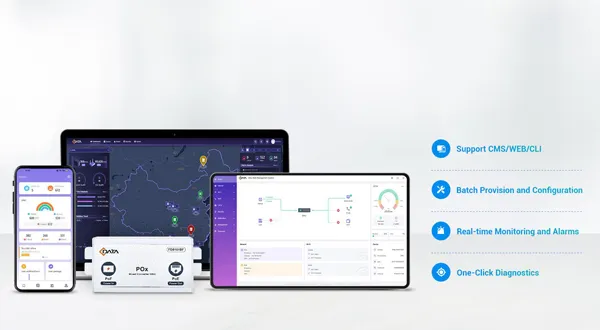

The Integrated Management System - 翻译中...

The Integrated Management System - 翻译中...

翻译中...

Suitable for All Scenarios - 翻译中...

翻译中...
  • mixed converter onu for hotel
  • mixed converter onu for residential building
  • mixed converter onu for outdoor remote sites
  • mixed converter onu for surveillance systems
  • mixed converter onu for temporary event

Technical Overview

Datasheet Get Docs

Technical Specifications


ModelFD5101BF
Dimensions127*56*23mm
Weight130g



Hardware
User Port (LAN)RJ-45 connector
1* 10/100/1000Mbps adaptive network port (PoE Power supply)
Full/Half duplex
Auto MDI/MDI-X
IndicatorsPWR / PON / LOS / LAN / POE / POF
PON PortPON modeEPON：1000BASE-PX20+ symmetric
GPON：Class B+/Class C+
PON rateEPON：1.25Gbps downstream/upstream
GPON：2.488Gbps/1.244Gbps downstream/upstream
ConnectorSC/UPC(APC optional), supports optical-electric composite cable power supply
WavelengthTransmit: 1310nmReceiver: 1490nm
Receiving sensitivityEPON：-27dBm  GPON：-28dBm
Saturated powerEPON：-3dBm   GPON：-8dBm
Transmitting powerEPON:0～4dBm  GPON：0.5～5dBm




Power supply
POF IN (optical-electric composite cable power supply, Standard PoE protocol),
Input voltage44-56V
Support PoE/PoE+(PSE)
PoE output voltage44-56V
PoE output power25W
DC12V/0.5A
Power consumption2W
Maximum machine power consumption27W



Environment
Working temperature-10 to 50ºC
Ambient humidity10% ~ 90% (Non-condensing)



Technical Specifications

Model

  • FD5101BF

Dimensions

  • 127*56*23mm

Weight

  • 130g



Hardware
User Port (LAN)

  • RJ-45 connector

  • 1* 10/100/1000Mbps adaptive network port (PoE Power supply)

  • Full/Half duplex

  • Auto MDI/MDI-X

Indicators

  • PWR / PON / LOS / LAN / POE / POF

PON Port
PON mode

  • EPON：1000BASE-PX20+ symmetric

  • GPON：Class B+/Class C+

PON rate

  • EPON：1.25Gbps downstream/upstream

  • GPON：2.488Gbps/1.244Gbps downstream/upstream

Connector

  • SC/UPC(APC optional), supports optical-electric composite cable power supply

Wavelength

  • Transmit: 1310nm

  • Receiver: 1490nm

Receiving sensitivity

  • EPON：-27dBm

  • GPON：-28dBm

Saturated power

  • EPON：-3dBm

  • GPON：-8dBm

Transmitting power

  • EPON: 0～4dBm

  • GPON: 0.5～5dBm



Power supply
POF IN (optical-electric composite cable power supply, Standard PoE protocol),
Input voltage

  • 44-56V

Support PoE/PoE+(PSE)
PoE output voltage

  • 44-56V

PoE output power

  • 25W

DC

  • 12V/0.5A

Power consumption

  • 2W

Maximum machine power consumption

  • 27W



Environment
Working temperature

  • -10 to 50ºC

Ambient humidity

  • 10% ~ 90% (Non-condensing)


Ordering Information

Product ModelSpecificationPower Supply (ONU Self-Power Consumption)
FD5101BF

1*xPON (SC,UPC/APC) + 1*GE (RJ45)

PoF Input Voltage: 44-56V DC

PoE Output Voltage: 44-56V DC

Maximum Output Power: 25W

DC: 12V/0.5A

Typical Power Consumption: 2W

Maximum Power Consumption: 27W


Ordering Information

Product Model

  • FD5101BF

Specification

  • 1*xPON (SC,UPC/APC) + 1*GE (RJ45)

  • PoF Input Voltage: 44-56V DC

  • PoE Output Voltage: 44-56V DC

  • Maximum Output Power: 25W

Power Supply (ONU Self-Power Consumption)

  • DC: 12V/0.5A

  • Typical Power Consumption: 2W

  • Maximum Power Consumption: 27W
